SQL Server Log Shipping: Step-by-Step Configuration and Prerequisites Guide

When it comes to establishing high availability and disaster recovery safeguards for production database workloads, enterprise engineering teams often run straight to complex, expensive mirroring solutions. Yet, for many real-world use cases—such as offloading heavy reporting queries, creating delayed recovery buffers against accidental data deletion, or maintaining low-cost warm standbys—the most reliable choice is a classic database infrastructure model: Log Shipping.

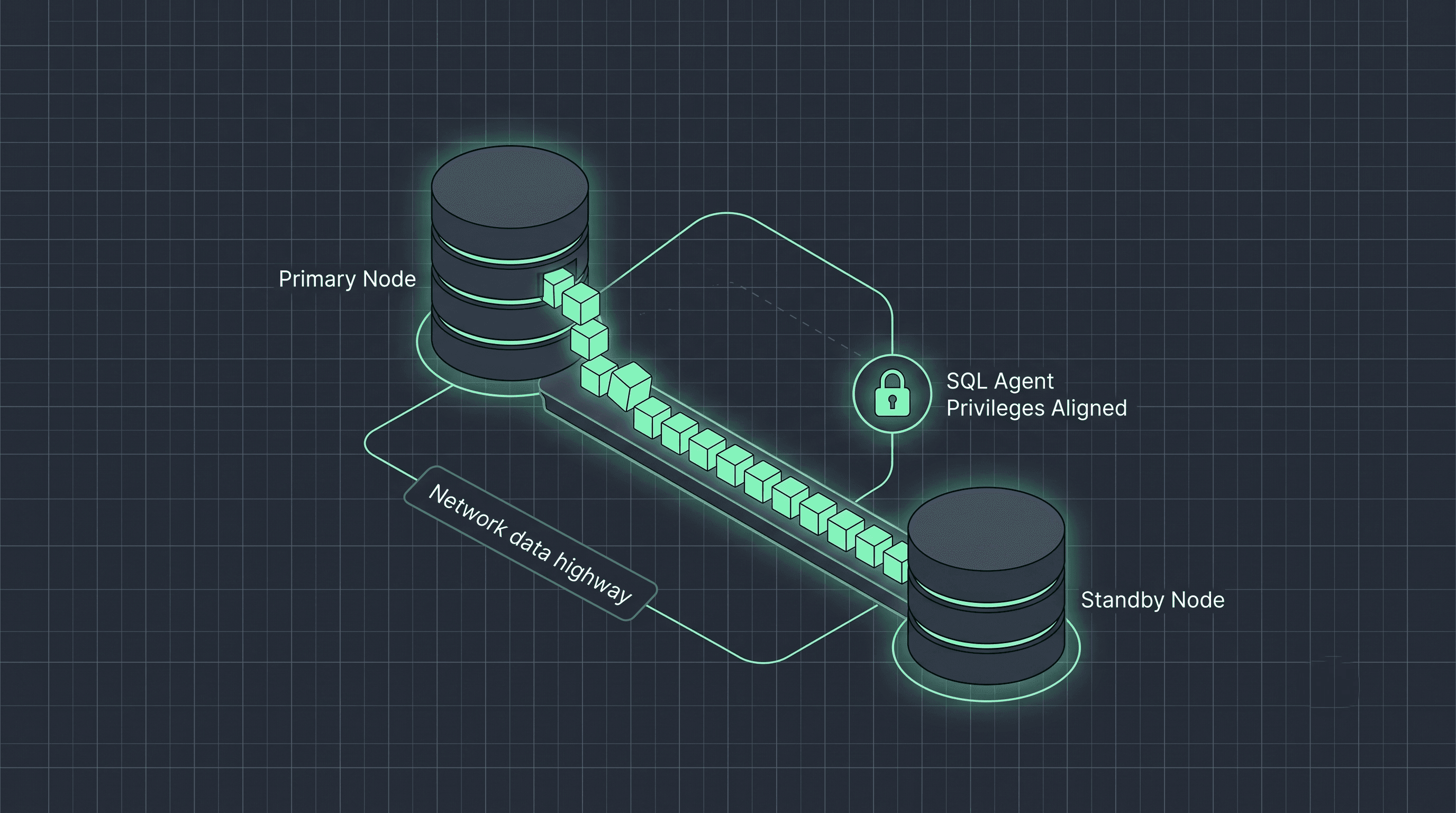

Log Shipping automates the backup, copy, and restore of transaction logs from a primary production instance to one or more secondary standby servers.

Because it relies on standard relational engine operations rather than continuous synchronous connections, it is incredibly stable and highly resource-efficient. However, setting it up requires navigating strict security mappings and strict configuration steps. Let's look at the absolute environment prerequisites for an elite log shipping deployment in plain language, step-by-step configuration passes inside SQL Server Management Studio (SSMS), and how to verify your automation pipelines are perfectly locked in place.

1. Log Shipping Prerequisites & Security Layout

Before executing a single configuration click inside your management console, your system environment must meet these strict prerequisite parameters. Failing to align network folder permissions is the number-one reason log shipping deployment jobs fail to initialize.

• Recovery Model Constraints: The primary database must utilize the FULL or BULK_LOGGED recovery model. If it is set to SIMPLE, transaction log records cannot be generated sequentially for backup.

• Dedicated Network Share: You must provision a shared network directory (e.g., \\PrimaryServer\LogShippingExport\) where the primary backup agent can drop its .trn files.

• Secondary Local Directory: The secondary standby server requires a local destination path (e.g., D:\LogShippingImport\) where the copy agent downloads files before the restore loop begins.

• SQL Server Agent Privileges: The Windows service accounts running the SQL Server Agent on both the primary and secondary server machines must have explicit Read/Write NTFS permissions and full network share privileges to access both folders.

2. Configuration Steps: Establishing the Source Pipeline

Follow this sequence on your Primary Server Instance to initialize the log shipping tracking framework:

Step A: Access the Transaction Log Shipping Wizard

1. Open SSMS and connect to your primary database instance.

2. Right-click your target production database, select Properties, and navigate to the Transaction Log Shipping page.

3. Check the box labelled Enable this as a primary database in a log shipping configuration.

Step B: Configure the Backup Settings

1. Click on the Backup Settings... button to open the configuration sub-window.

2. Specify the network path to your backup folder (e.g., \\PrimaryServer\LogShippingExport\).

3. If the backup folder rests locally on the primary machine, specify the local path (e.g., D:\LogShippingExport\) in the secondary path box so local I/O calls run faster.

4. Set up your SQL Server Agent Backup Job parameters. The industry standard baseline frequency is 15 minutes. Click OK.

-- CONCEPTUAL METADATA PASS: What SSMS executes under the hood to enable the primary engine
EXEC master.dbo.sp_add_log_shipping_primary_database
    @database = N'YourPrimaryDatabaseName',
    @backup_directory = N'D:\LogShippingExport\',
    @backup_share = N'\\PrimaryServer\LogShippingExport\',
    @backup_job_name = N'LSBackup_YourDatabaseName',
    @backup_retention_period = 4320, -- Retain logs for 3 days before cleanup
    @monitor_server_type = 2;
GO

3. Configuration Steps: Binding the Secondary Standby

Once the primary pipeline is established, you must attach your secondary target container inside the exact same configuration screen.

Step A: Add the Secondary Target Node

1. Inside the Transaction Log Shipping page, click Add... under the Secondary databases grid block.

2. Click Connect... and authenticate against your secondary standby server instance.

3. Choose your secondary database name (you can create a brand-new container right here or overwrite an existing one).

Step B: Initialize the Target Secondary Database

Navigate across the three primary configuration tabs inside the secondary wizard to map out your infrastructure behavior:

Tab 1: Initialize Secondary Database

Choose how you want to copy your baseline data layout over to the secondary server instance:

• Option A: Let SSMS generate a full backup and restore it automatically over the network.

• Option B: Restore a manual full backup and transaction log sequence ahead of time yourself, leaving the secondary database in NORECOVERY or STANDBY mode.

Tab 2: Copy Files

1. Specify the absolute local destination directory where incoming backups should be written (e.g., D:\LogShippingImport\).

2. Configure the Copy Job schedule. This should match your primary backup frequency (e.g., every 15 minutes) to keep file transport streaming continuously.

Tab 3: Restore Transaction Log

1. Set the database state to Standby mode (read-only) to ensure your analysts or BI dashboards can query the tables safely.

2. Check the crucial box labeled Disconnect users in the database when restoring backups. This stops open read connections from triggering exclusive lock errors (Msg 3101).

3. Set your Restore Job timer schedule to fire on a rolling 15-minute sequence.

-- CONCEPTUAL METADATA PASS: Registering the secondary target agent parameters
EXEC master.dbo.sp_add_log_shipping_secondary_database
    @secondary_database = N'YourSecondaryDatabaseName',
    @primary_server = N'PrimaryServerName',
    @primary_database = N'YourPrimaryDatabaseName',
    @restore_delay = 0,
    @restore_mode = 1, -- Enforce STANDBY read-only environment
    @disconnect_users = 1, -- Force automated user termination to clear exclusive locks
    @restore_job_name = N'LSRestore_PrimaryServer_YourDatabaseName';
GO

1. Click OK on the secondary screen, then click OK on the primary database properties block. SQL Server will execute the background infrastructure routines, spin up your new automated SQL Server Agent jobs, and engage continuous high-availability log shipping.

4. The Ultimate Log Shipping Operational Infrastructure Cheat Sheet

For quick reference during initialization phases, backup configuration passes, or security rights alignment reviews, utilize this comprehensive multi-panel architecture dashboard to track system jobs, manage packet transfers, and enforce directory safety policies.

Are you in the process of establishing a new warm-standby log shipping replica to offload reporting queries safely from your primary environment? Did optimizing your folder access rights or tuning your restore disconnection settings clear your deployment jobs instantly? Let’s talk cluster infrastructure strategies and high-availability design steps in the comments below!
