Always On Availability Groups: How to Fix Synchronization Lag and Stop REDO Thread Starvation

It is a terrifying metric for any infrastructure engineer or database administrator to witness. You have designed an elite, multi-node enterprise environment utilizing Always On Availability Groups to ensure absolute data protection and near-zero downtime. For months, your primary and secondary replicas stay perfectly aligned. But during a nightly data load, an index maintenance window, or a heavy data import, you check your high-availability dashboard and see your recovery markers slipping. A massive backlog forms, and the console throws a chilling status: Synchronization Lag is increasing.

When your secondary replica falls behind, your disaster recovery network is compromised. If your primary hardware node crashes while a massive backlog exists, your automated failover will either lock up or trigger catastrophic data loss.

When facing sync lag, many engineering teams instinctively blame network card bottlenecks or slow storage writes on the secondary machine. While those factors can cause delays, the actual culprit is usually a hidden architectural bottleneck inside the database engine itself known as REDO Thread Starvation. Let's look at why secondary replicas fall behind in plain language, how to trace the size of your hidden transaction queues, and how to optimize your engine parameters to keep data nodes perfectly synchronized.

1. The Real-World Analogy: The Automated Mailroom and the Single Typist

To understand why Availability Group synchronization lag happens, look at how an international shipping corporation coordinates record tracking between its primary headquarters and its secondary backup office across the city.

• The Primary Node (The Automated Sorting Facility): The main headquarters handles thousands of packages a minute, stamping boxes with a laser barcodes at blistering speed (Your Active Production Transactions). Every time a label is printed, a copy of the tracking invoice is instantly faxed over to the backup office across town (The Network Log Transport Stream).

• The Network Pipe (The High-Speed Fax Machine): The fax machine sends thousands of tracking sheets across town in fractions of a second. The network link is wide open and pristine.

• The Secondary Replica (The Lone Typist): Inside the backup office sits a single data clerk (The Database REDO Thread). Their job is to pick up every incoming fax sheet off the floor, manually type the text line-by-line into the backup mainframe computer, and save it to disk.

• The Redo Starvation Bottleneck: During a massive inventory shift, the main headquarters starts printing 50,000 labels an hour. The fax machine spits out sheets across the room like a machine gun. The lone clerk types as fast as humanly possible, but they can only process 500 sheets an hour. Within minutes, a mountain of paper forms on the floor (The REDO Queue Size Bloat). The secondary office falls hours behind, not because the fax machine broke or the network link went down, but because the person tasked with applying the changes cannot keep pace with the sheer volume of incoming work.

In SQL Server, Availability Group synchronization lag occurs when the secondary replica receives transaction logs instantly over the network, but cannot write those changes into its own data pages fast enough, causing a massive recovery backlog.

2. The Internal Mechanics: The Log Hardening vs. Redo Split

To protect your application data, Always On Availability Groups split data synchronization into two entirely separate mechanical phases inside the secondary engine instance:

• Log Hardening (Catching the Fax): The secondary replica receives raw transaction log blocks from the network card and writes them straight down into its physical transaction log file (.ldf). Because this is a simple, sequential disk write operation, it is incredibly fast.

• The REDO Phase (Typing the Changes): Once the logs are hardened to disk, SQL Server must roll those transactions forward by modifying the actual rows inside your primary database data files (.mdf). It has to read the log line, locate the corresponding index page in memory or on disk, apply the data block adjustment, and update the index pointers.

The Core Bottleneck: While log hardening happens in parallel, the application of those logs (the REDO process) has historically relied on a tightly constrained set of internal worker allocations. If a primary server executes a massive index rebuild or a bulk import that modifies millions of rows sequentially, the secondary replica's redo engine gets completely overwhelmed by the sheer intensity of the page adjustments required, causing your synchronization markers to tank.

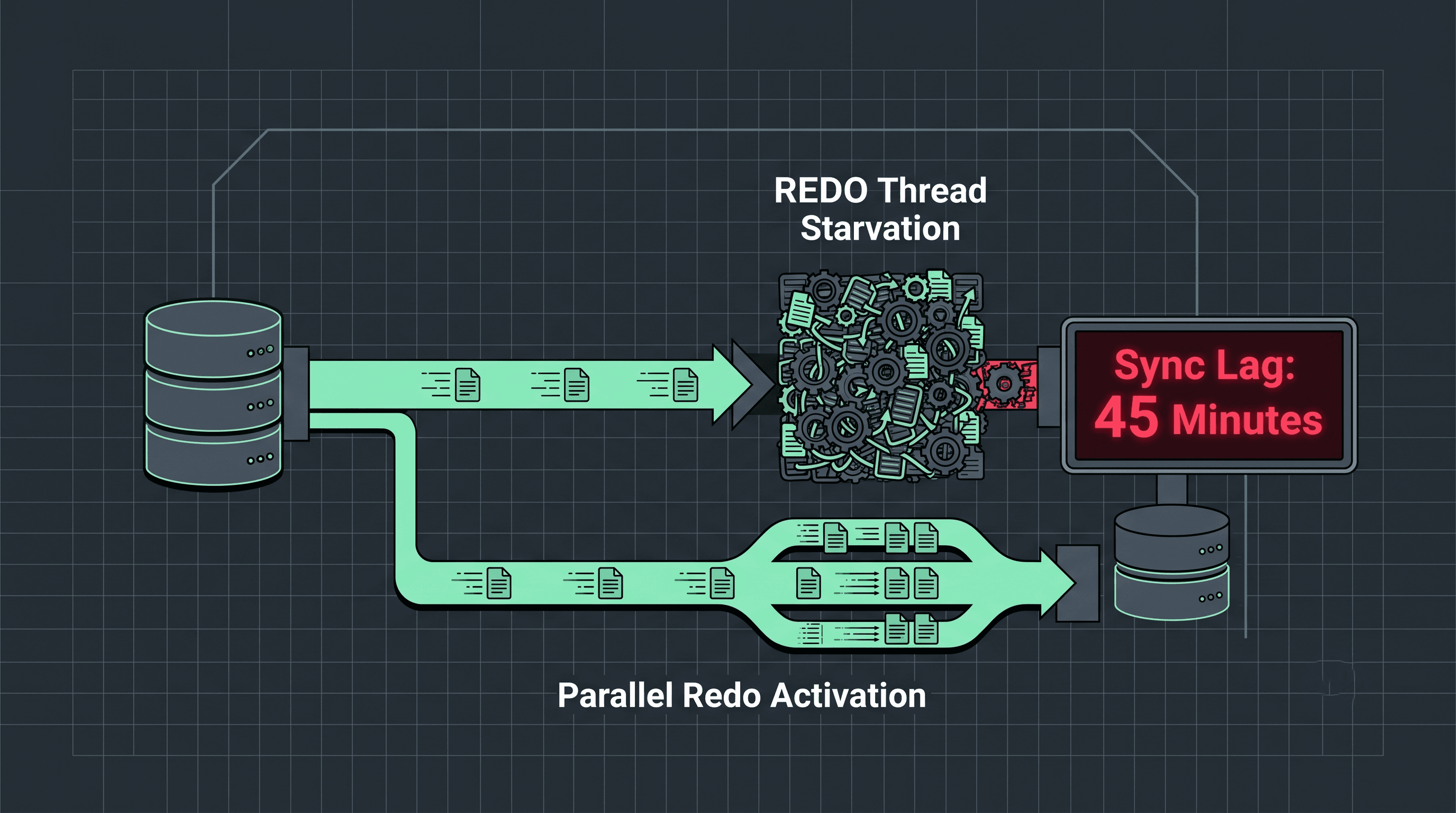

3. Diagram 1: Clean Synchronous Flow vs. Redo Queue Starvation

This architectural processing map details how heavy transaction spikes choke the secondary replica's recovery layer, creating a dangerous data lag gap.

[Image showing transactional logs transferring cleanly over a network link but backing up inside a secondary replica's redo queue]

4. Live Triage: Calculating Your Real-Time Availability Group Lag Baseline

When your high-availability dashboard indicates an amber warning status, you can bypass high-level UI wizards and query the database engine's real-time internal synchronization metadata metrics directly.

Run this plain-language diagnostic script to check the exact size of your redo backlog and calculate your estimated recovery window down to the second:

SELECT
    ar.replica_server_name AS [Replica_Server_Name],
    drcs.database_name AS [Database_Name],
    drs.synchronization_state_desc AS [HighAvailability_Status],
    -- View the total size of transaction log blocks waiting to be applied in clean Megabytes
    drs.redo_queue_size / 1024 AS [Redo_Backlog_Size_MB],
    -- Calculate how long it will take the secondary node to become fully safe in seconds
    CASE
        WHEN drs.redo_rate = 0 THEN 0
        ELSE (drs.redo_queue_size / drs.redo_rate)
    END AS [Estimated_Recovery_Time_Seconds]
FROM sys.dm_hadr_database_replica_states drs
JOIN sys.availability_replicas ar ON drs.replica_id = ar.replica_id
JOIN sys.dm_hadr_database_replica_cluster_states drcs ON drs.group_database_id = drcs.group_database_id
WHERE drs.is_local = 0; -- Target remote secondary replica configurations specifically
GO

Analyzing the High-Availability Metrics Thresholds

Look closely at your calculated results data:

• If Redo_Backlog_Size_MB is expanding steadily while Estimated_Recovery_Time_Seconds climbs into hundreds of seconds, your secondary replica is actively suffering from thread exhaustion and cannot catch up to your production volume without tuning interventions.

5. How to Fix Redo Starvation and Eliminate Synchronization Lag

To safely clear your recovery backlogs and keep your cluster nodes perfectly aligned during intensive business transactions, apply these strategic infrastructure tuning configurations.

Step 1: Maximize Redo Thread Limits via Trace Flag 3459 / Parallel Redo

Modern versions of SQL Server utilize a feature known as Parallel Redo by default, which maps out multiple internal workers to apply log pages simultaneously. However, under heavy transactional bursts, these helper pools can still hit scheduling limits.

If you are running enterprise workloads on legacy system versions or notice thread serialization bottlenecks, you can explicitly configure your server parameter settings to enforce high-concurrency parallel tracking execution behaviours:

-- Consult your infrastructure architect before applying global parameters
-- Trace Flag 3459 can be evaluated during maintenance windows to check parallel worker efficiency
-- DBCC TRACEON (3459, -1);

💡 Infrastructure Pro-Tip: In modern database engines, ensuring that your secondary replica hardware specifications (CPU core layout and disk I/O performance capacities) match your primary server layout exactly is the absolute number-one way to prevent parallel redo bottlenecks.

Step 2: Stop Large Row-by-Row Index Rebuild Spikes

Running a raw, un-optimized ALTER INDEX REBUILD loop on a giant table on your primary node creates a massive storm of sequential transaction log writes. The primary node handles this easily via memory caches, but the secondary node is forced to process those millions of page replacements through its redo thread single-file, triggering massive synchronization lag.

Optimize your maintenance routines: switch your operations to utilize ALTER INDEX REORGANIZE where appropriate, or ensure index rebuild tasks are split into small, staggered schedules during off-peak maintenance hours to prevent overwhelming the secondary replica's intake lanes.

6. The Ultimate High Availability & Replication Optimization Cheat Sheet

For quick reference during an automated failover alert, synchronization crisis, or replication performance triage session, utilize this comprehensive multi-panel architecture dashboard to monitor queue depths, evaluate recovery times, and maintain database node clusters safely.
